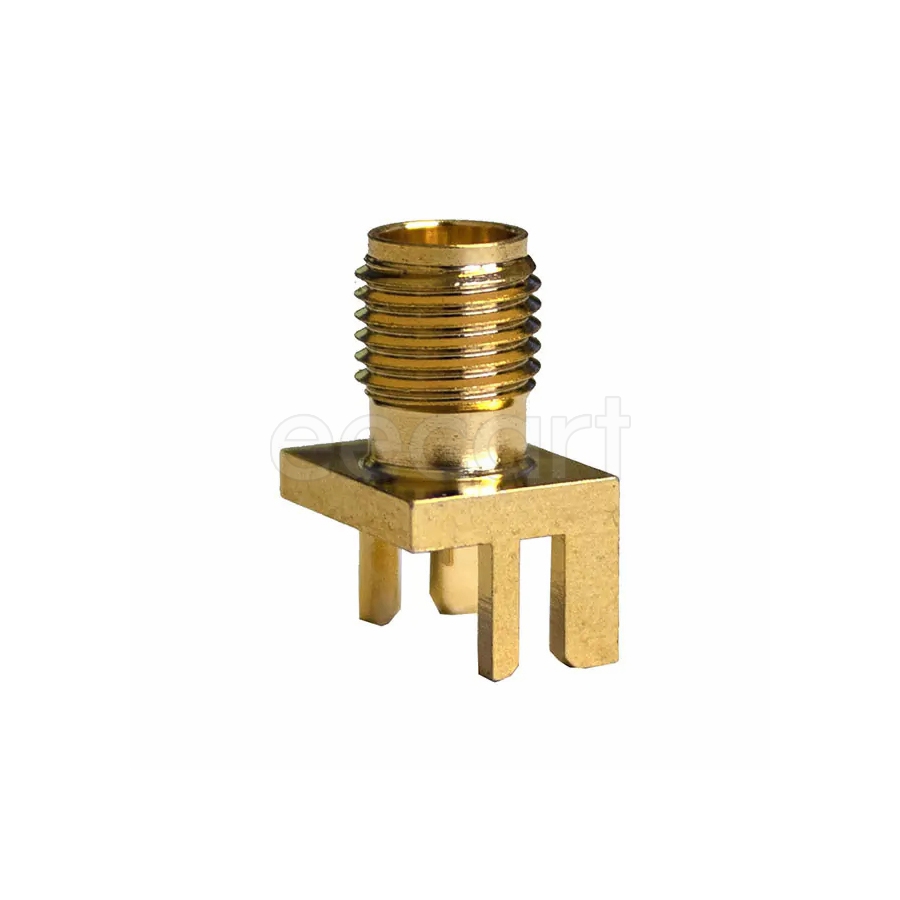

142-0701-851
Manufacturer:
Cinch Connectivity Solutions
Mfr.Part #:
142-0701-851
Datasheet:
Description:
RF / Coaxial Connectors SMD/SMT SMA, Socket 50 Ω
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 335 V |
| Length | 9.52 mm |
| Termination | Solder |
| Max Operating Temperature | 165 °C |
| Min Operating Temperature | -65 °C |
| Packaging | Tray |
| Voltage Rating | 335 V |
| Depth | 14.27 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| REACH SVHC | Unknown |
| Dielectric Material | PTFE |
| Contact Plating | Gold |
| Impedance | 50 Ω |
| Contact Material(Contact Finish) | Copper |
| Frequency | 18 GHz |
| Orientation | Straight |
| Color | Gold |
| Gender | Female |
| Body Material | Brass |
| Connector Type | SMA, Socket |
| Max Frequency | 18 GHz |
| Insulation Material | PTFE |
| Housing Material | Brass |
| Fastening Type | Threaded |
| Contact Resistance | 3 mΩ |
| Housing Color | Gold |
| Body Plating | Gold |
| RF Series | SMA |
| Contact Termination | Solder Tab |
| Shield Termination | Solder |
Stock: 24434
Distributors
pcbx
pcbxUnit Price$5.33764
Ext.Price$5.33764
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $5.33764 | $5.33764 |
| 10 | $4.53597 | $45.35970 |
| 25 | $4.25095 | $106.27375 |
| 50 | $4.04795 | $202.39750 |
| 100 | $3.85467 | $385.46700 |
| 300 | $3.64188 | $1092.56400 |
| 500 | $3.44083 | $1720.41500 |
| 1000 | $3.27668 | $3276.68000 |
| 3000 | $3.03254 | $9097.62000 |
